Flattened Security Mesh
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |

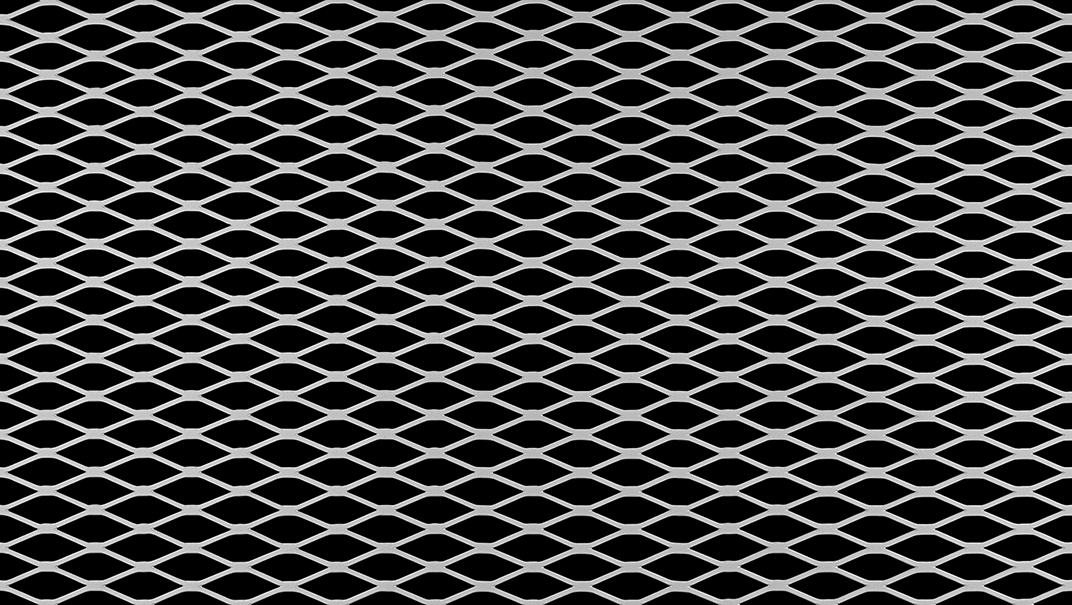

| 30-82FR | 24.38 | 7.62 | 2.08 | 1.14 | 3.17 | 1250 x 2500 | Mild Steel |  |  |

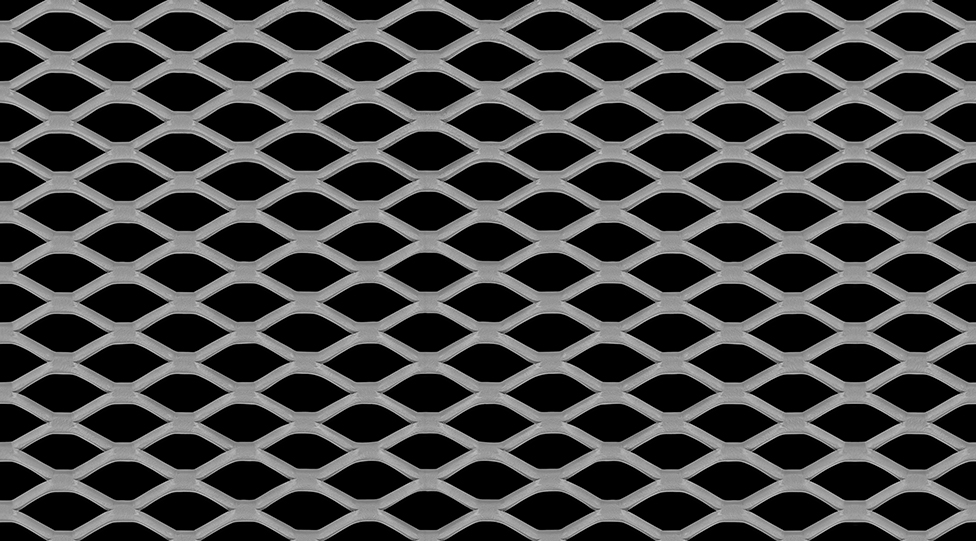

| 38-69F | 27.00 | 12.20 | 3.25 | 3.00 | 8.06 | 1220 x 2440 | Mild Steel | | |

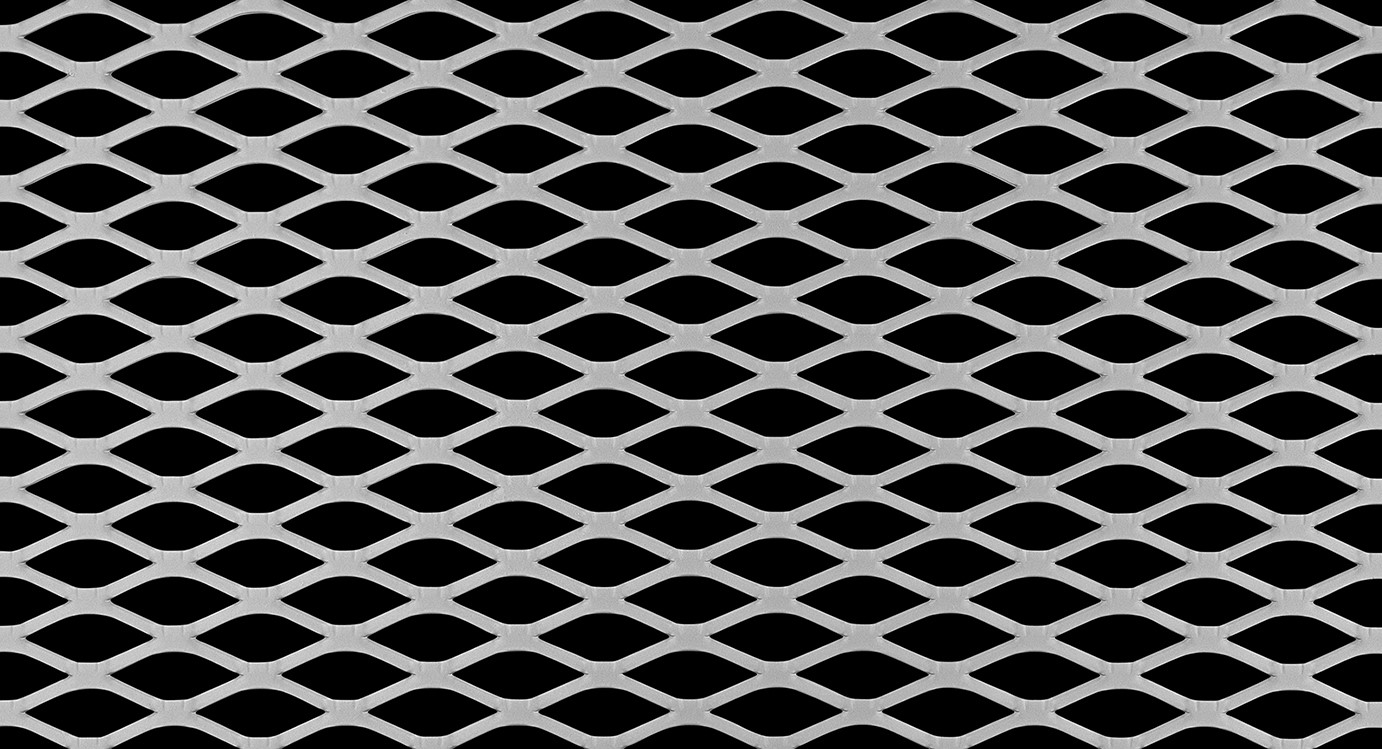

| 50-73F | 42.93 | 14.22 | 4.60 | 2.69 | 8.59 | 2440 x 1220 | Mild Steel | | |
| 50-73F-XXL | 42.93 | 14.22 | 4.60 | 2.69 | 8.59 | 2440 x 3000 | Mild Steel | | |
| 50-73F HDG | 42.93 | 14.22 | 4.60 | 2.69 | 9.70 | 2440 x 1220 | H D Galv | | |
| 50-76F | 43.43 | 18.03 | 2.31 | 1.14 | 1.85 | 1250 x 2500 | Mild Steel | | |
| 50-76FG | 43.43 | 18.03 | 2.31 | 1.14 | 1.85 | 1250 x 2500 | Pre-Galv | | |

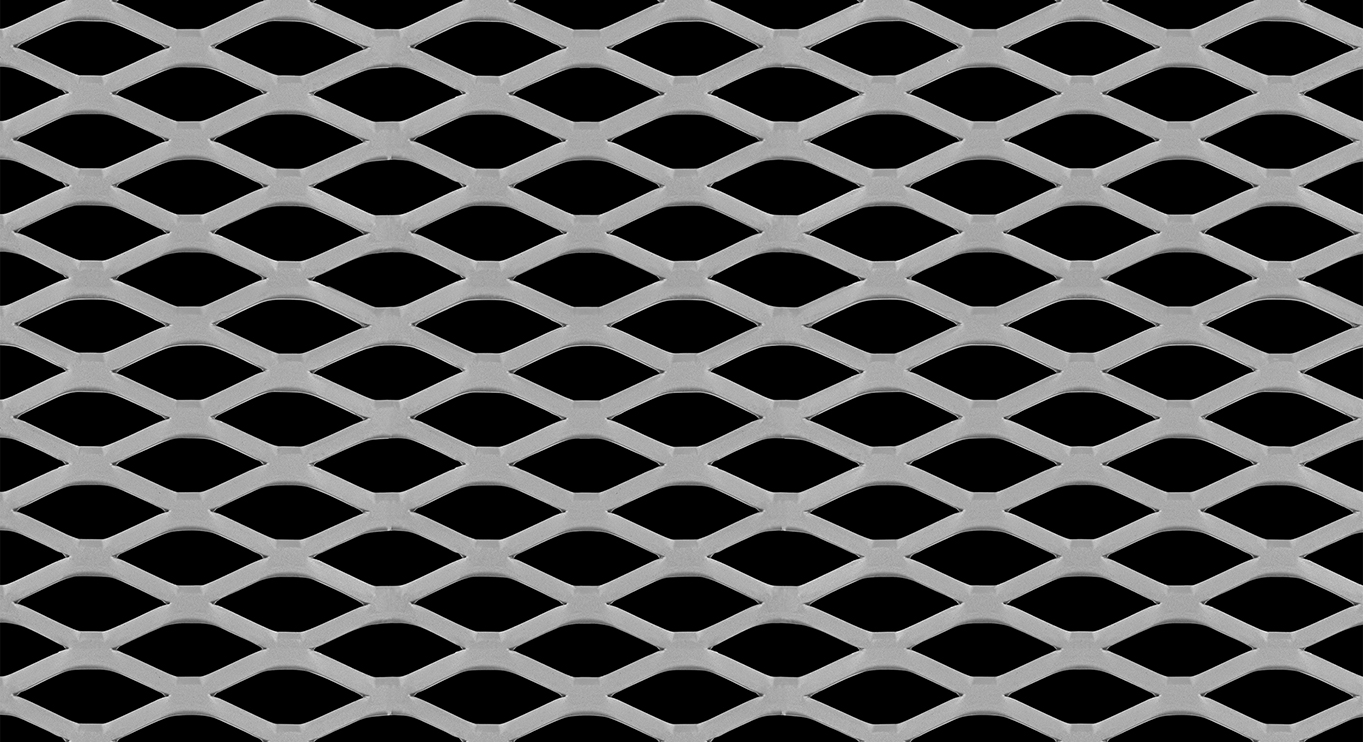

| 60-90F | 43.00 | 17.00 | 6.00 | 4.00 | 13.16 | 1250 x 2500 | Mild Steel | | |
Raised Security Mesh
| Ref No. | Mesh Pitch LW (mm) |
Mesh Pitch SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |

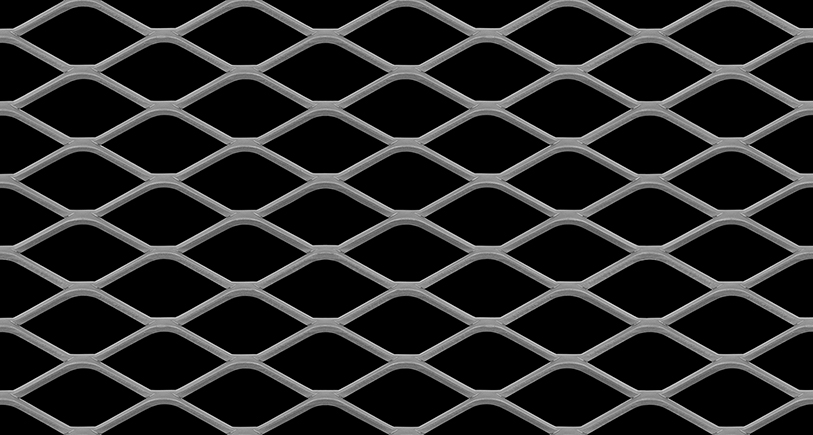

| 50-89 | 50.80 | 22.58 | 3.12 | 3.00 | 6.52 | 2440 x 1220 | Mild Steel | | |
| 50-89 HDG | 50.80 | 22.58 | 3.12 | 3.00 | 7.10 | 2440 x 1220 | H D Galv | | |

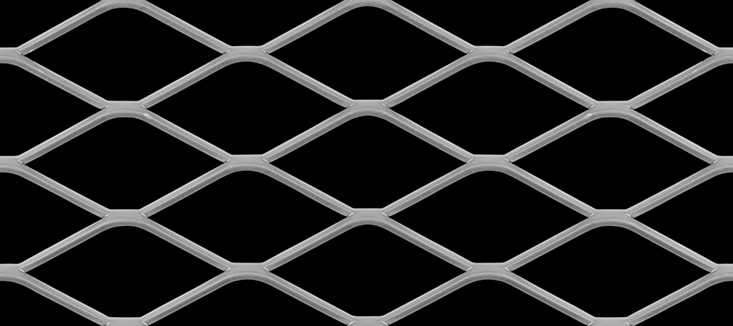

| 76-92 | 76.20 | 33.87 | 3.58 | 3.00 | 4.97 | 2440 x 1220 | Mild Steel | | |

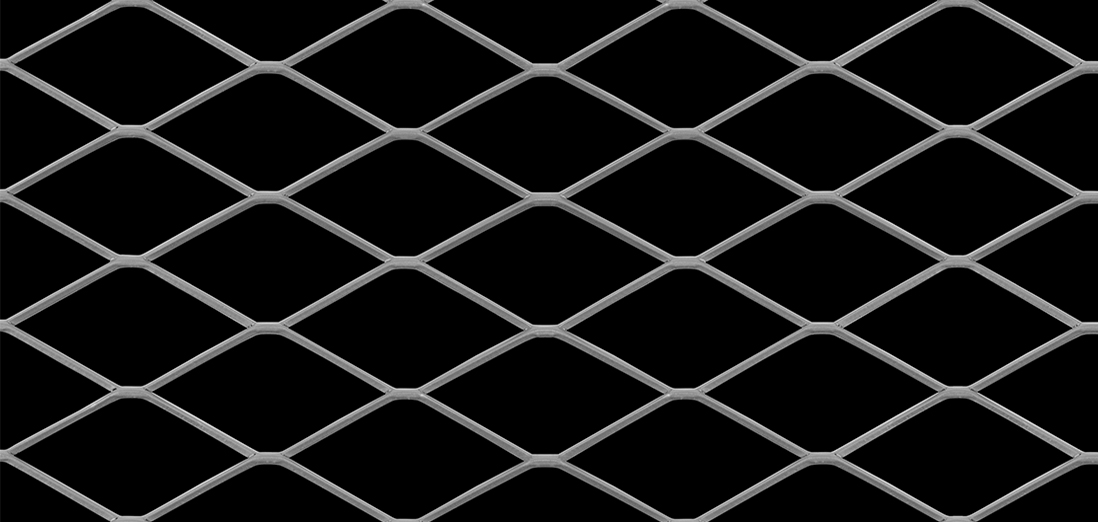

| 85-96 | 85.73 | 40.64 | 3.18 | 3.00 | 3.67 | 2440 x 1220 | Mild Steel | | |

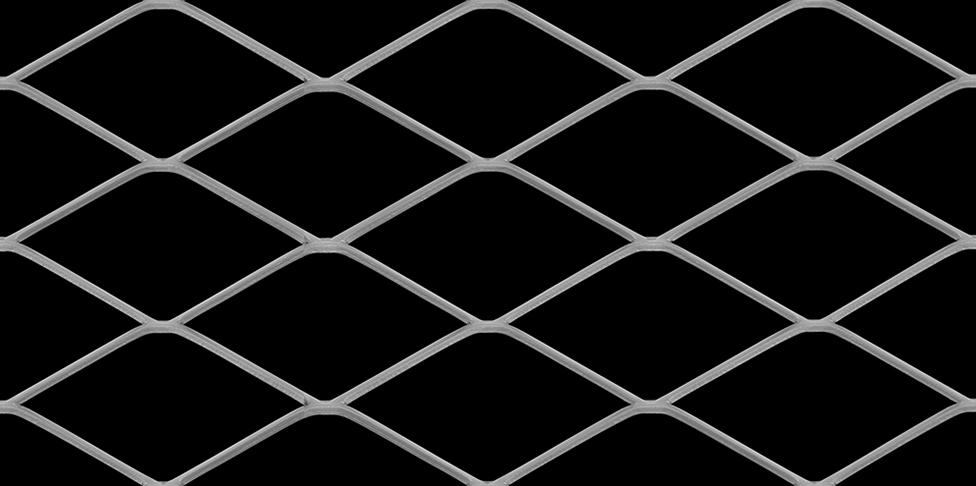

| 10-97 | 101.60 | 50.80 | 3.35 | 3.00 | 3.11 | 2440 x 1220 | Mild Steel | | |

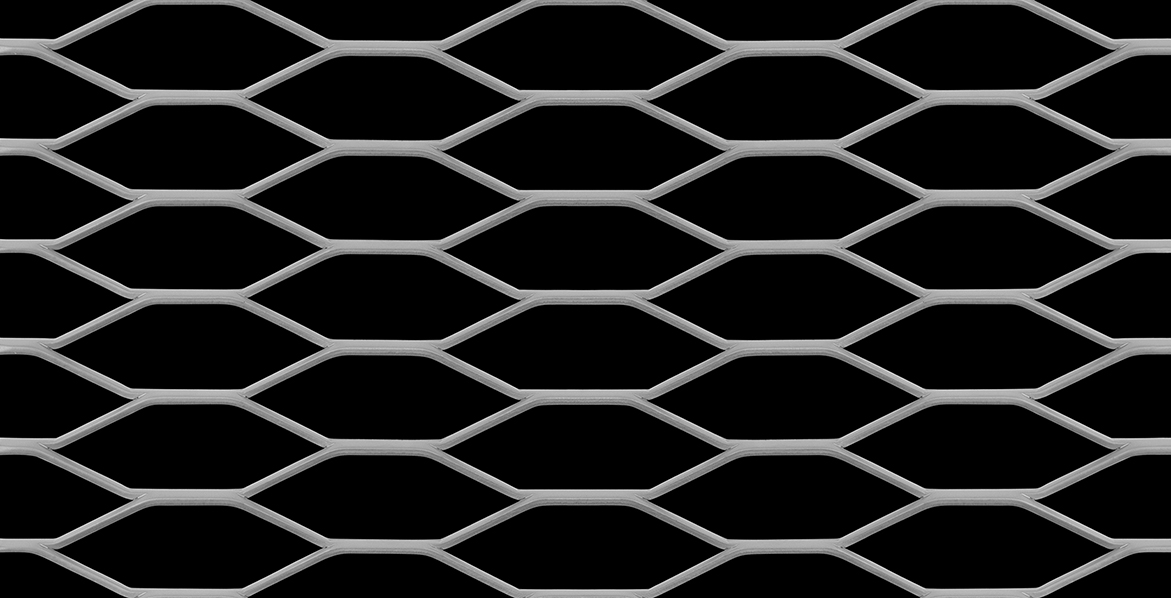

| 12-69 | 101.60 | 50.80 | 3.35 | 3.00 | 5.27 | 2440 x 1220 | Mild Steel | | |

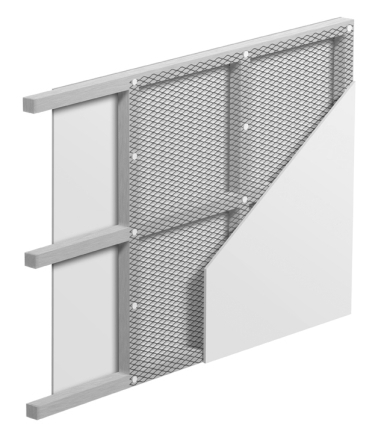

Security lath acts as a cost effective preventative measure to secure internal and external walls, ceilings and roofs from intruders.
Available as standard sheets or cut to size.
- Fix at 450mm centres to stud wall - Timber Stud: 38mm galvanised staples, screws or nails with 25mm washer - Metal Stud: 30mm self tapping screws with 25mm washer - Brickwork: 50mm screw & plug with 25mm washer
