6mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |
| 06-20F | 3.81 | 2.03 | 0.79 | 0.60 | 2.11 | 1250 x 1250 | Mild Steel |  |  |

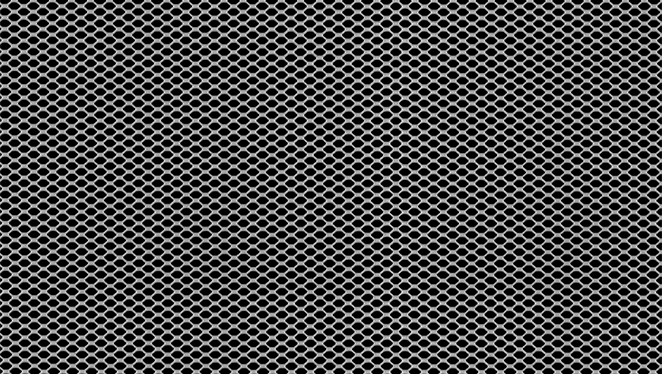

| 06-20FG | 3.81 | 2.03 | 0.79 | 0.60 | 2.11 | 1250 x 1250 | Pre-Galv | | |
| 06-26SF | 3.50 | 2.10 | 0.79 | 0.50 | 1.73 | 1250 x 1250 | Stainless 304 | | |

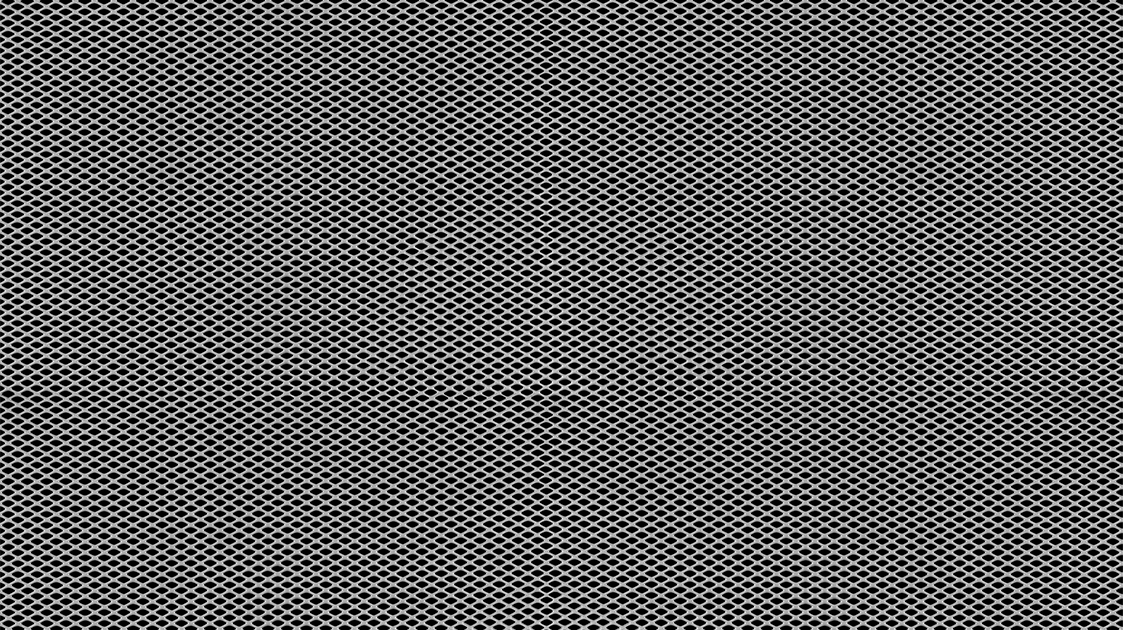

| 06-28SF | 3.50 | 2.05 | 0.75 | 0.50 | 1.73 | 1000 x 1500 | Stainless 430 | | |
8mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |

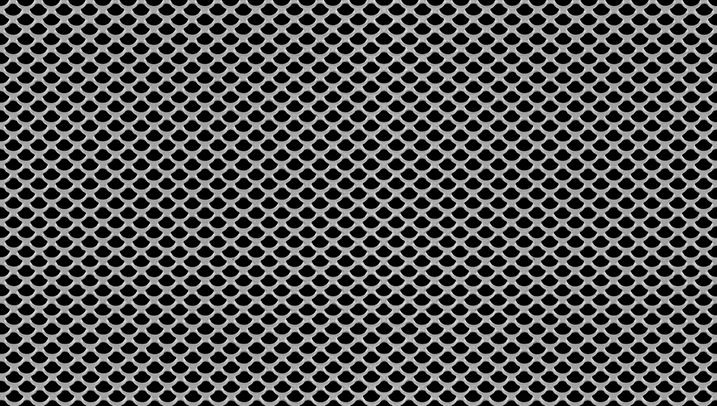

| 08-64FG | 5.00 | 3.45 | 1.30 | 0.70 | 2.35 | 1250 x 2500 | Pre-Galv | | |
10mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |

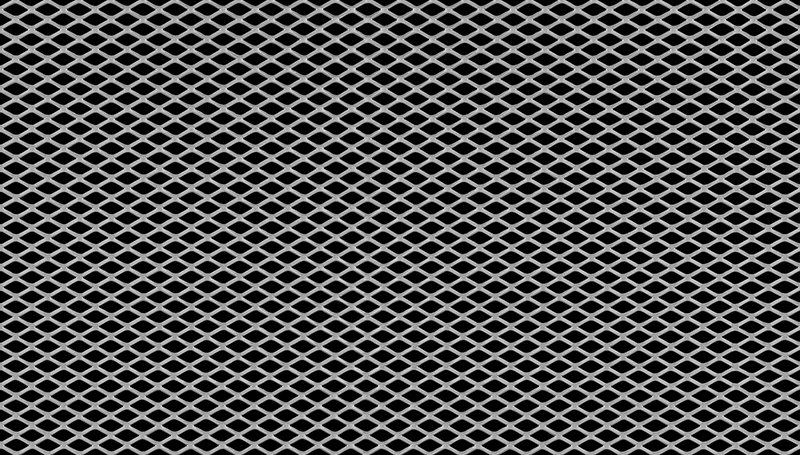

| 10-17F | 6.85 | 3.56 | 1.30 | 0.90 | 2.97 | 1250 x 2500 | Mild Steel | | |
| Galv FM | 6.00 | 4.00 | 0.80 | 0.60 | 1.29 | 1250 x 1250 | Pre-Galv | | |
| 10-17AF | 6.85 | 3.56 | 1.30 | 0.90 | 1.00 | 1250 x 2500 | Aluminium | | |
| 10-64FG | 6.50 | 3.45 | 1.30 | 0.70 | 2.35 | 1250 x 2500 | Pre-Galv | | |
12mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |

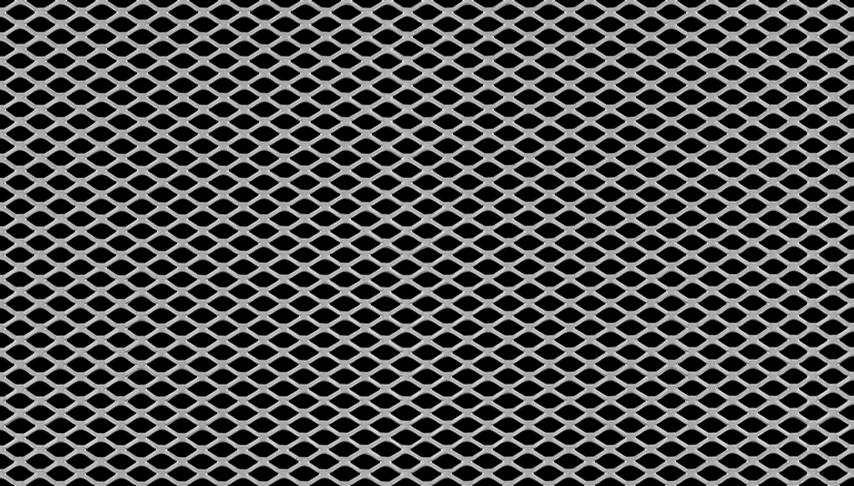

| 12-20F | 9.50 | 5.00 | 1.30 | 0.90 | 2.42 | 1250 x 2500 | Mild Steel | | |
| Q12-8.5F | 9.20 | 7.00 | 1.30 | 0.90 | 1.91 | 1250 x 2500 | Mild Steel | | |
19mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |
| 19-94F | 14.22 | 4.80 | 1.85 | 0.90 | 3.07 | 1250 x 2500 | Mild Steel | | |

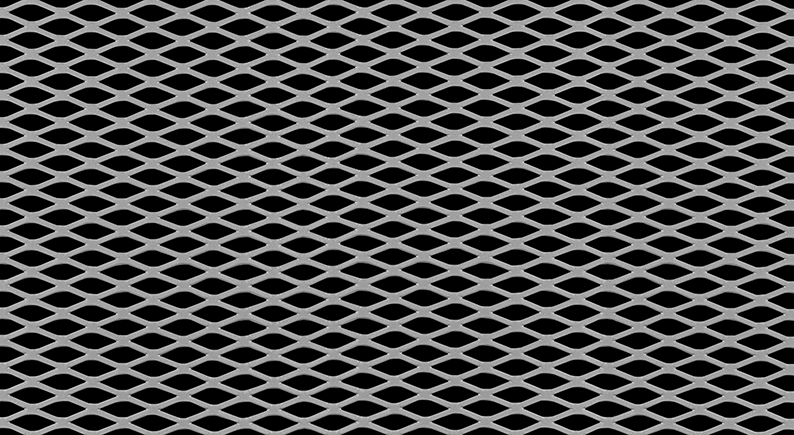

| 19-94AF | 14.22 | 4.80 | 1.85 | 0.90 | 1.03 | 1250 x 2500 | Aluminium | | |
| 19-93SF | 14.22 | 4.80 | 1.80 | 0.70 | 2.40 | 1250 x 2500 | Stainless 304 | | |
| 19-94SF | 14.22 | 4.80 | 1.80 | 0.90 | 3.01 | 1000 x 2000 | Stainless 304 | | |

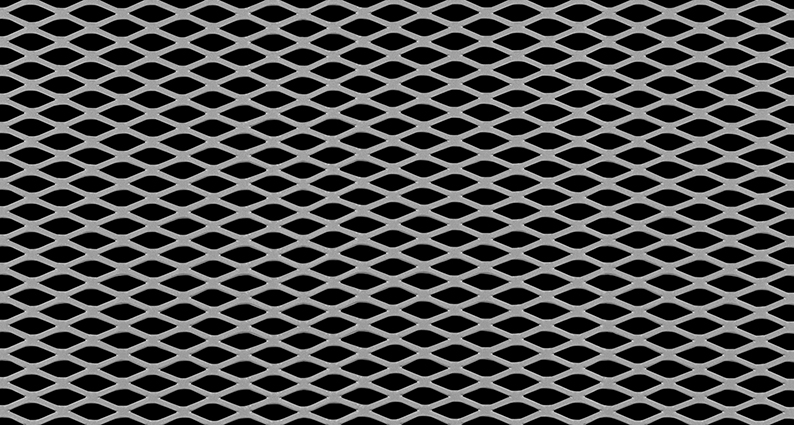

| 19-94SF 316 | 15.00 | 5.30 | 1.80 | 0.90 | 2.90 | 1250 x 2500 | Stainless 316 | | |
30mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |

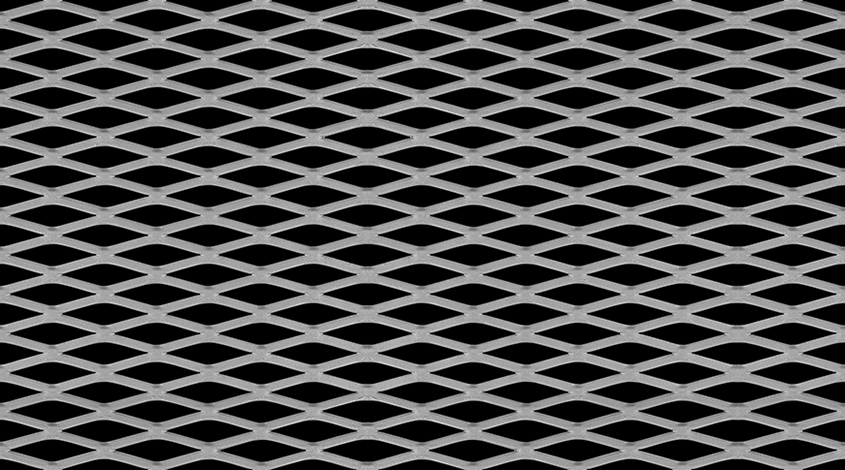

| 30-79F | 23.11 | 5.84 | 3.20 | 1.52 | 6.27 | 2440 x 1220 | Mild Steel | | |
| 30-80F | 24.38 | 7.11 | 2.39 | 1.14 | 3.64 | 2440 x 1220 | Mild Steel | | |
| 30-81F | 24.38 | 7.87 | 2.06 | 1.50 | 4.07 | 2440 x 1220 | Mild Steel | | |
| 30-82FR | 24.38 | 7.62 | 2.08 | 1.14 | 3.17 | 1250 x 2500 | Mild Steel | | |
| 30-80AF | 24.10 | 7.11 | 2.39 | 1.14 | 1.20 | 1250 x 2500 | Aluminium | | |

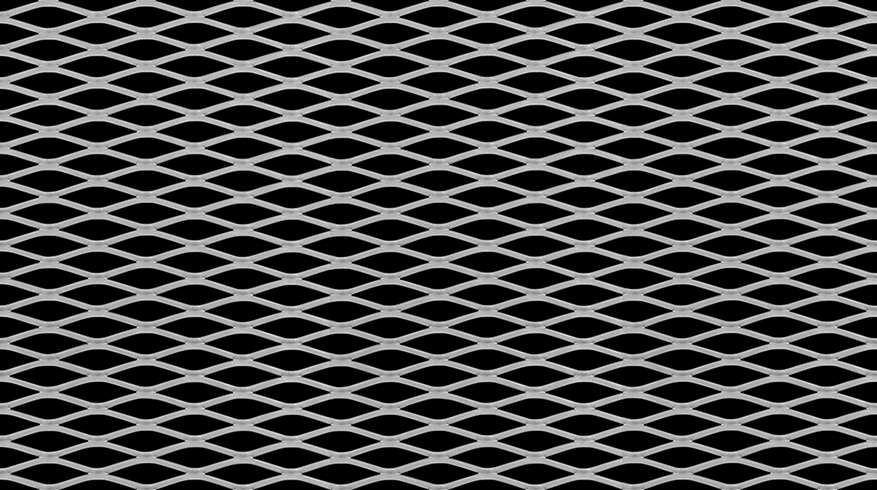

| 30-76SFR | 21.00 | 6.00 | 2.10 | 1.20 | 4.00 | 1250 x 2500 | Stainless 304 | | |

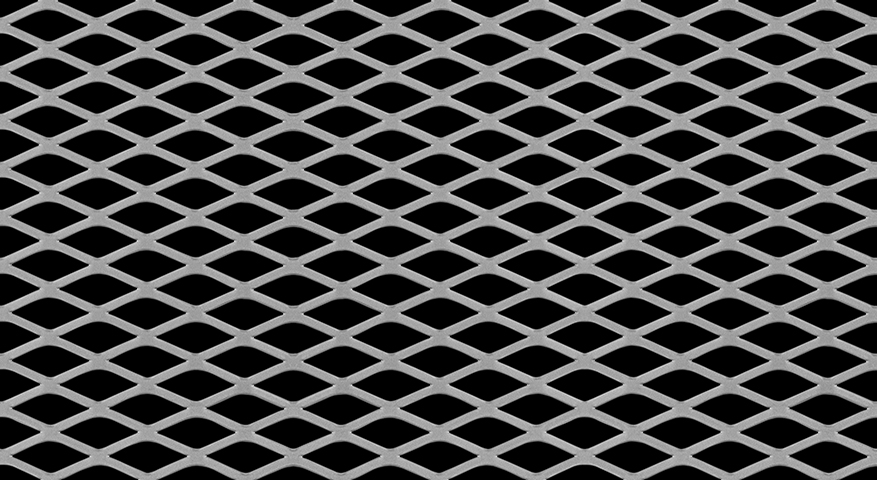

| 30-79SFR | 21.00 | 9.00 | 3.00 | 1.50 | 5.00 | 1250 x 2500 | Stainless 304 | | |
38mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |
| 38-69F | 27.00 | 12.20 | 3.25 | 3.00 | 8.06 | 1220 x 2440 | Mild Steel | | |

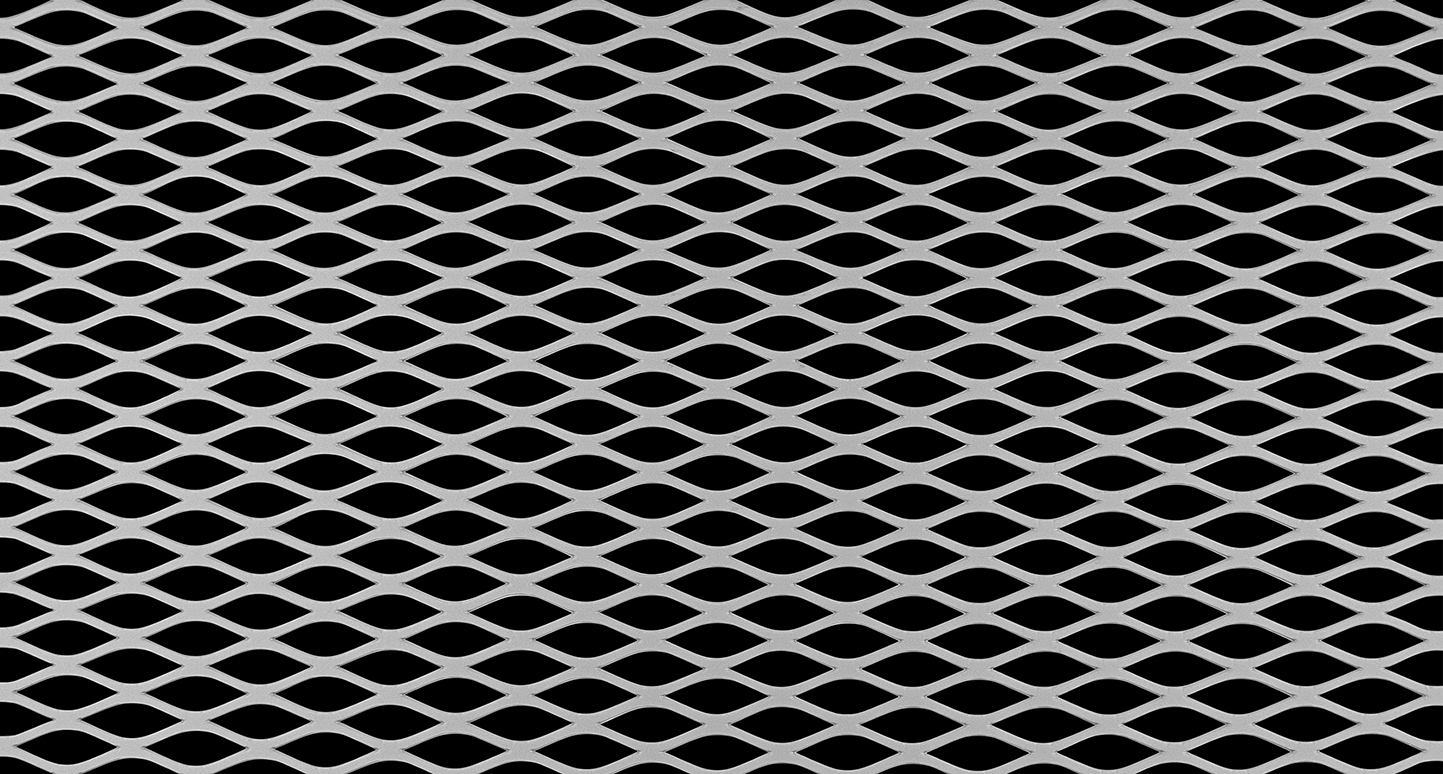

| 38-84F | 32.77 | 10.92 | 3.18 | 1.50 | 4.41 | 2440 x 1220 | Mild Steel | | |

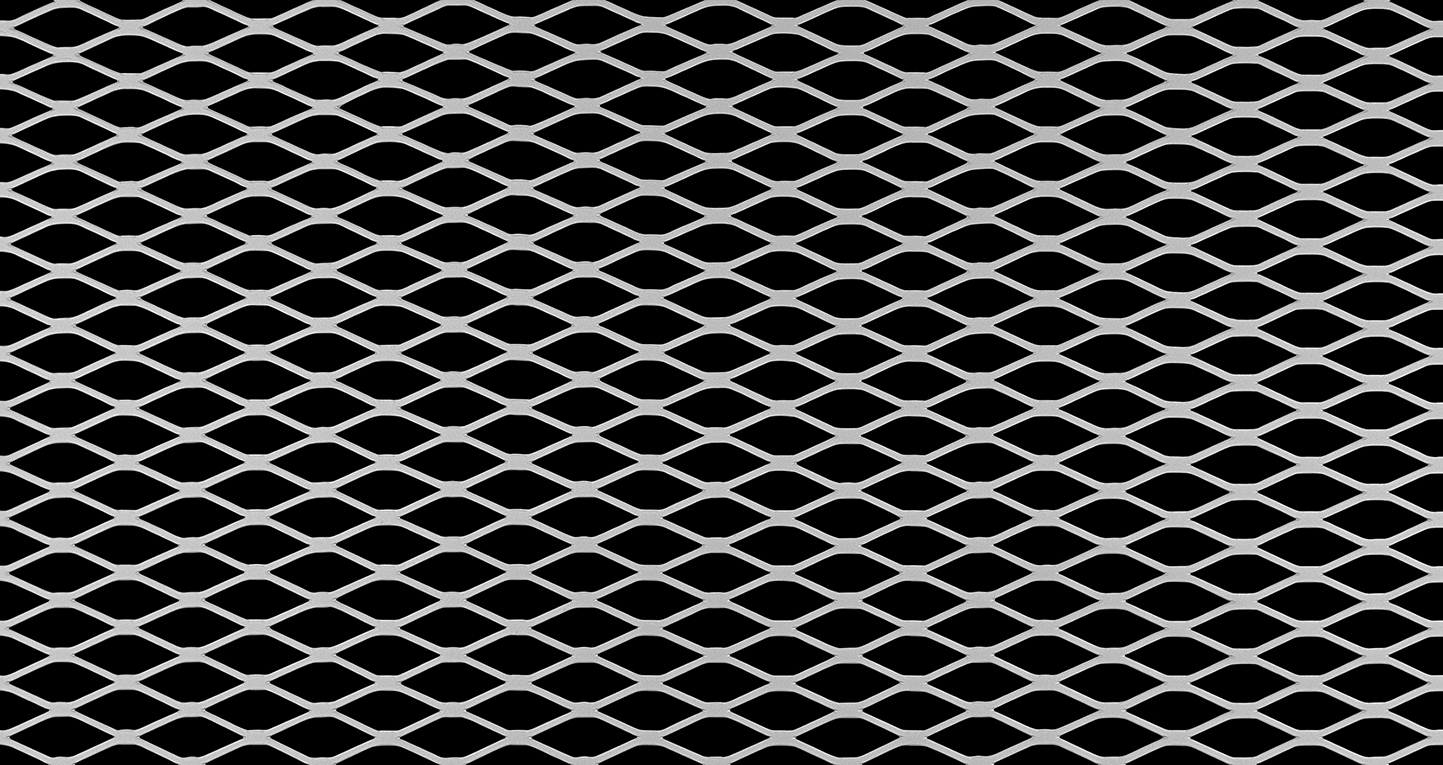

| 38-85F | 33.53 | 12.45 | 2.31 | 1.14 | 2.47 | 2440 x 1220 | Mild Steel | | |
| 38-85FGR | 33.53 | 12.45 | 2.31 | 1.14 | 2.47 | 1250 x 2500 | Pre-Galv | | |
| 38-85AF | 33.53 | 12.45 | 2.31 | 1.14 | 0.87 | 1250 x 2500 | Aluminium | | |
| 38-85AF XL | 33.53 | 12.45 | 2.31 | 1.14 | 0.87 | 1250 x 3000 | Aluminium | | |
50mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |
| 50-73F | 42.93 | 14.22 | 4.60 | 2.69 | 8.59 | 2440 x 1220 | Mild Steel | | |
| 50-73F-XXL | 42.93 | 14.22 | 4.60 | 2.69 | 8.59 | 2440 x 3000 | Mild Steel | | |

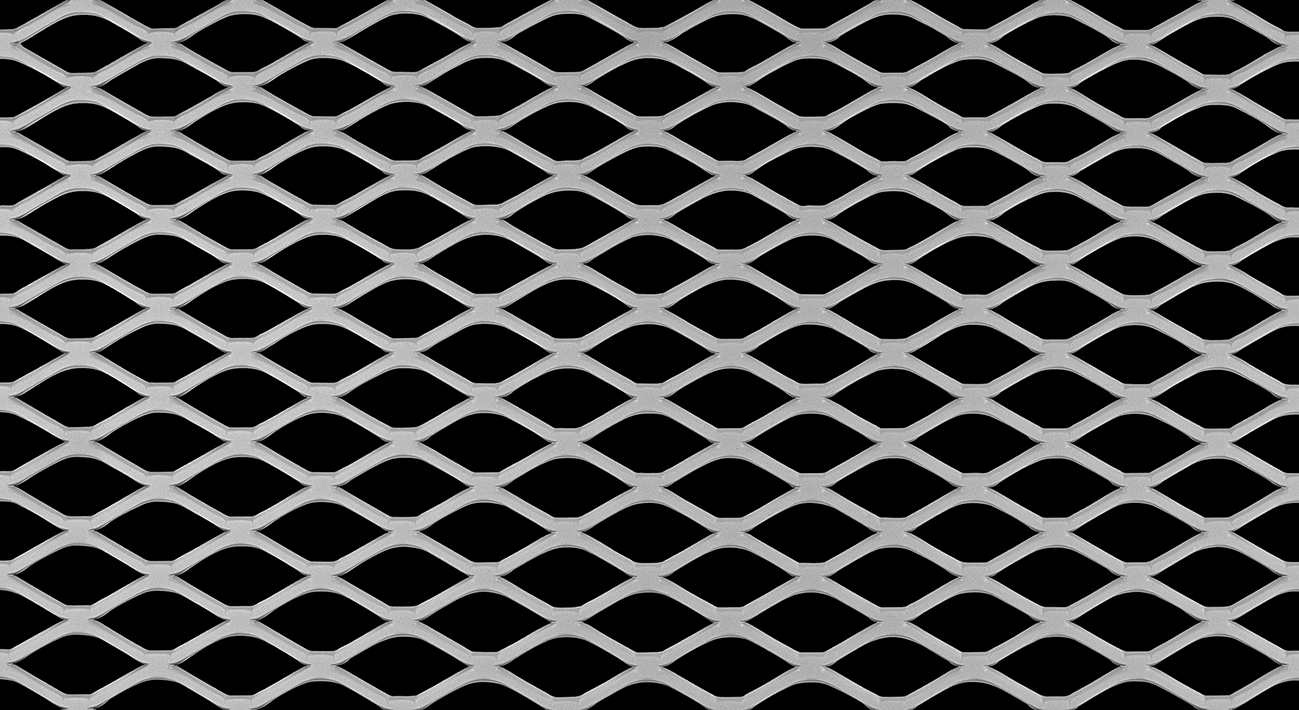

| 50-74F | 39.12 | 18.29 | 4.72 | 2.74 | 7.55 | 1250 x 2500 | Mild Steel | | |
| 50-76F | 43.43 | 18.03 | 2.31 | 1.14 | 1.85 | 1250 x 2500 | Mild Steel | | |

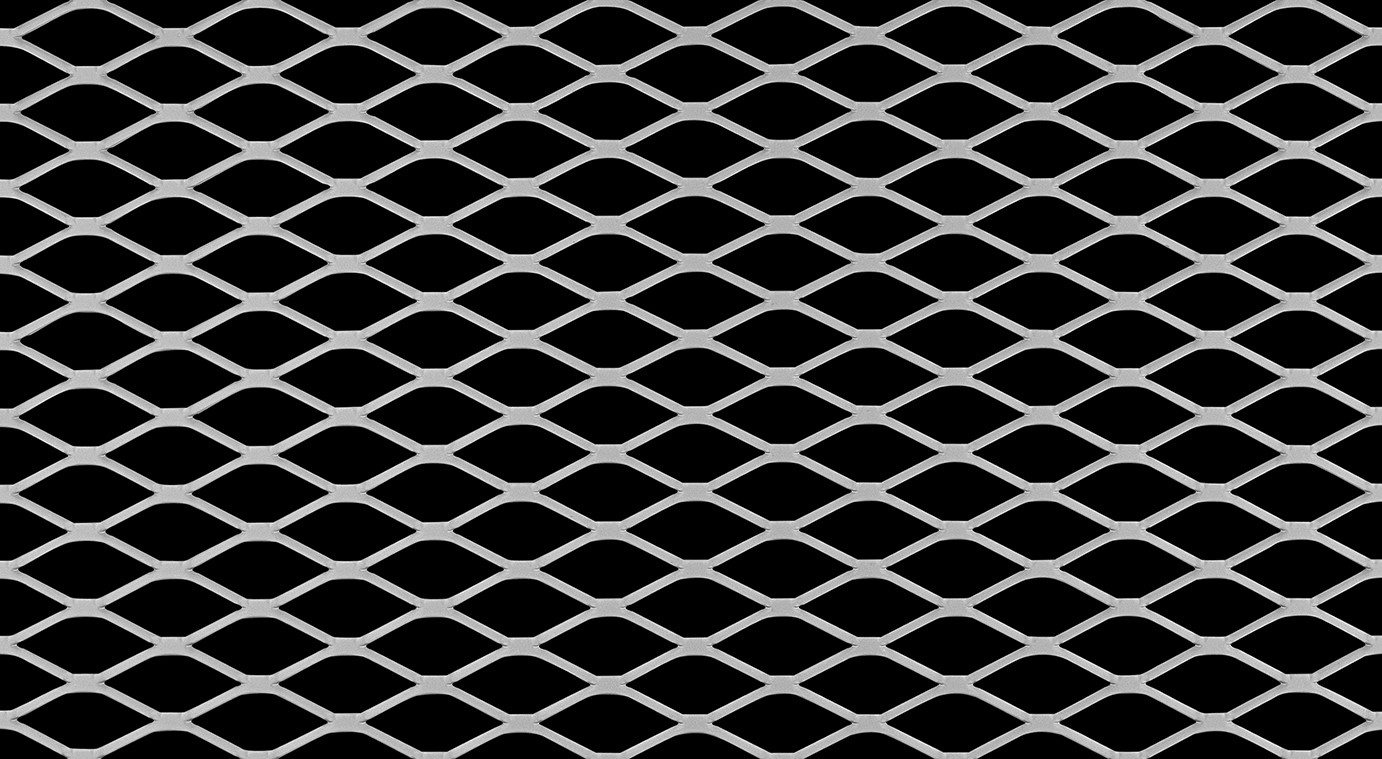

| 50-77F | 43.18 | 17.27 | 3.23 | 1.50 | 3.24 | 2440 x 1220 | Mild Steel | | |
| 50-76FG | 43.43 | 18.03 | 2.31 | 1.14 | 1.85 | 1250 x 2500 | Pre-Galv | | |
| 50-73F HDG | 42.93 | 14.22 | 4.60 | 2.69 | 9.70 | 2440 x 1220 | H D Galv | | |
| 50-74AF | 40.64 | 17.78 | 3.00 | 2.90 | 2.82 | 1250 x 2500 | Aluminium | | |
| 50-76AF | 43.43 | 18.03 | 2.31 | 1.14 | 0.63 | 1250 x 2000 | Aluminium | | |
| 50-87SF | 43.18 | 18.00 | 2.75 | 1.20 | 2.30 | 2500 x 1250 | Stainless 304 | | |
60mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |
| 60-90F | 43.00 | 17.00 | 6.00 | 4.00 | 13.16 | 1250 x 2500 | Mild Steel | | |
85mm Meshes
| Ref No. | Mesh Aperture LW (mm) |
Mesh Aperture SW (mm) |
Strand Width |
Strand Thickness |
Weight kg / m2 |
Sheet Size LWD x SWD |
Material Type | Image | Data Sheet |

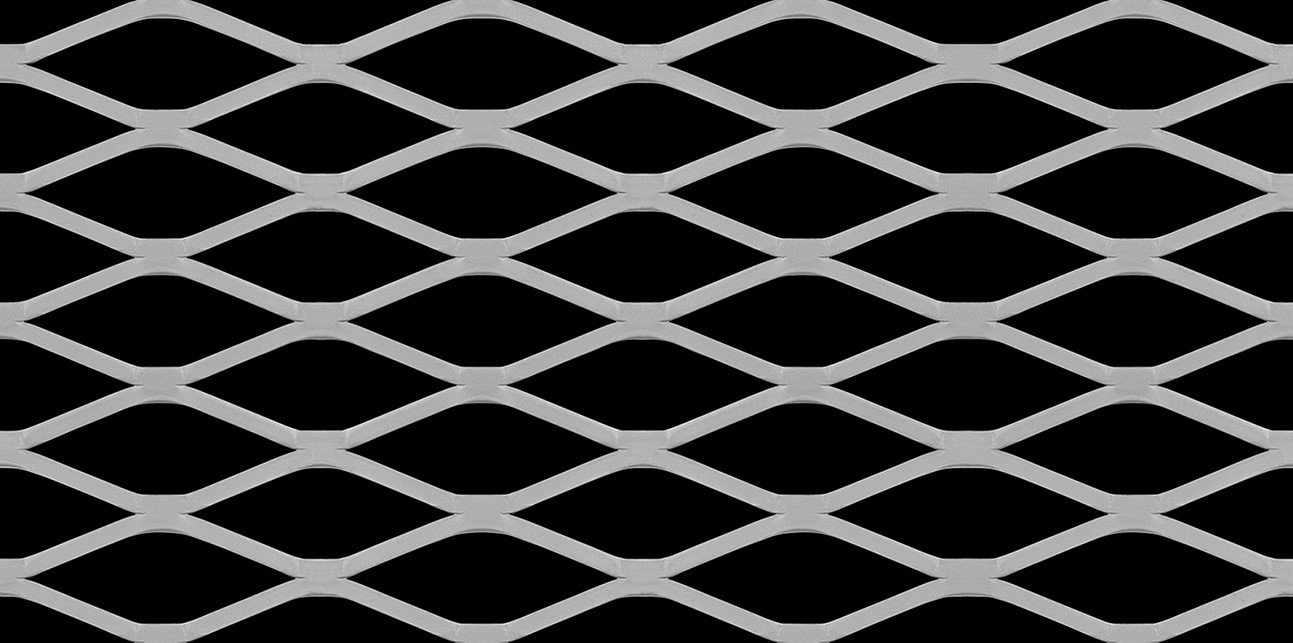

| 85-93F | 77.47 | 27.18 | 6.53 | 2.90 | 7.15 | 2440 x 1220 | Mild Steel | | |
