Raised Mesh

3mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

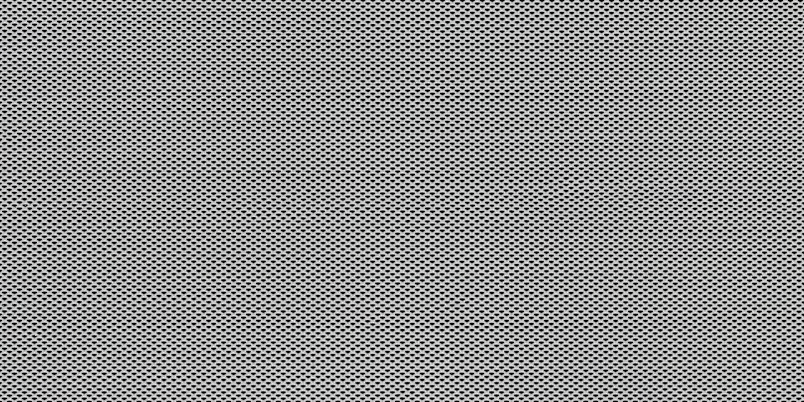

03-26	3.00	1.90	0.60	0.40	1.98	500 x 1000	Mild Steel

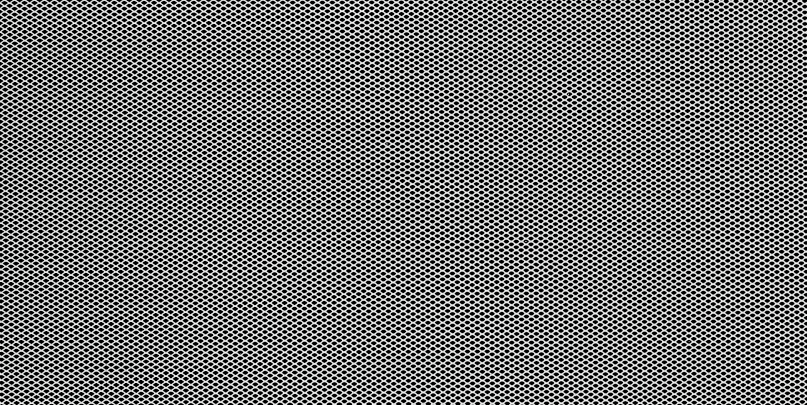

03-01A	3.00	1.81	0.28	0.30	0.25	610 x 7.62m & 10.00m	Aluminium

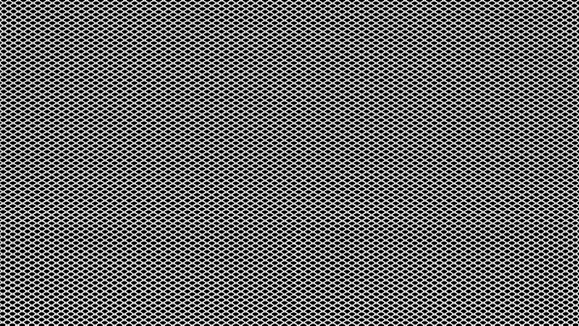

03-27	3.00	1.81	0.40	0.20	0.71	100, 150 & 500mm Coil	Stainless 304

6mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

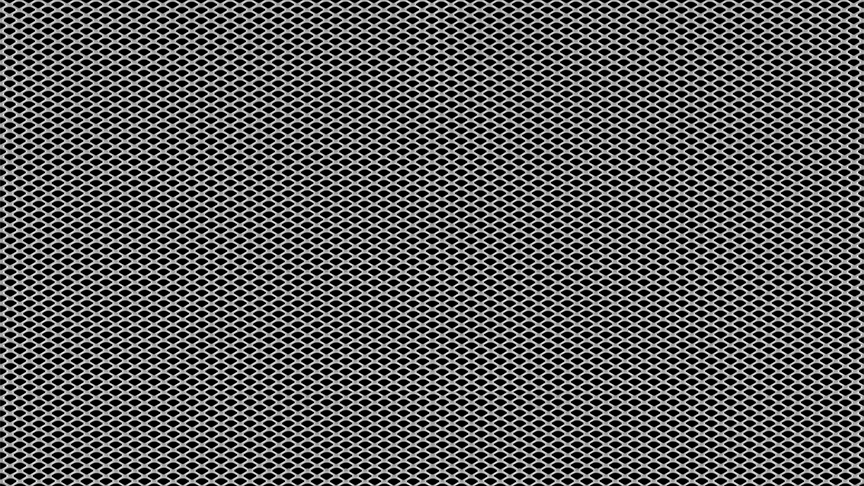

06-20	6.00	3.50	0.79	0.60	2.11	1250 x 1250	Mild Steel
06-20G	6.00	3.50	0.79	0.70	2.48	1250 x 1250	Pre-Galv
06-20GXL	6.00	3.50	0.79	0.70	2.48	1250 x 2500	Pre-Galv
06-01AXL	6.00	3.50	0.79	0.50	0.61	1250 x 2500	Aluminium
06-01AXXL	6.00	3.50	0.79	0.50	0.61	1250 x 3000	Aluminium

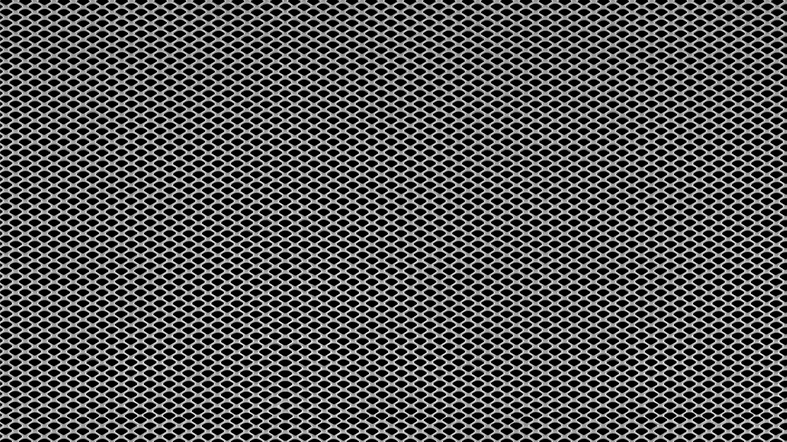

06-27S	6.00	3.39	0.80	0.50	1.74	1250 x 1250	Stainless 304
MMRB06	6.00	4.25	1.20	1.00	-	1250 x 2500	Mild Steel, Pre Galv & Aluminium

10mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet
10-08	10.00	5.64	1.17	0.90	2.93	1250 x 2000	Mild Steel

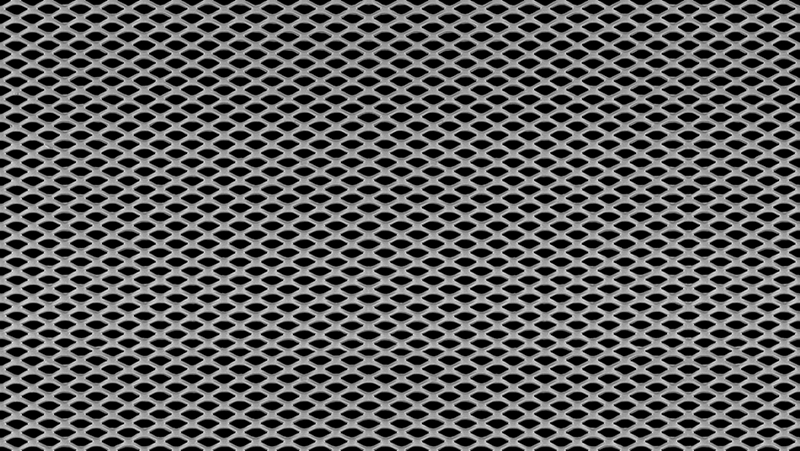

10-09	10.00	5.64	1.55	0.90	4.30	1250 x 1250	Mild Steel
10-03G	10.00	5.64	0.79	0.60	1.31	1250 x 1250	Pre-Galv

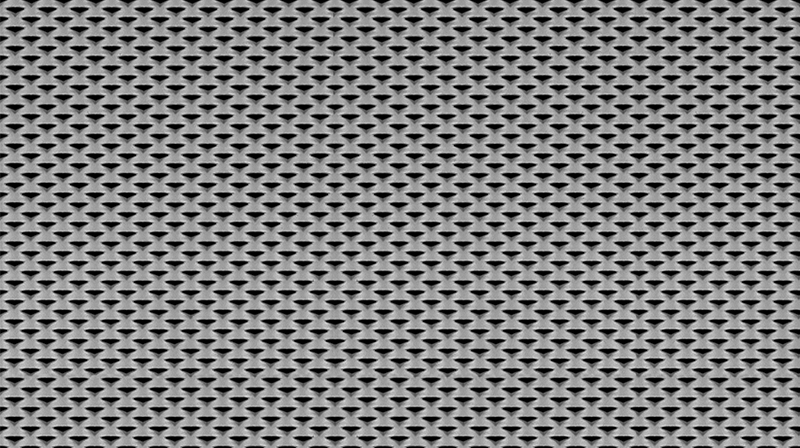

10-16GDM	10.00	6.09	2.45	1.50	9.47	1250 X 930	Pre-Galv
10-50AL	10.00	5.64	1.17	1.20	1.35	1250 X 1250	Aluminium
10-51AL	10.00	5.64	1.55	0.90	1.34	1250 x 1250	Aluminium

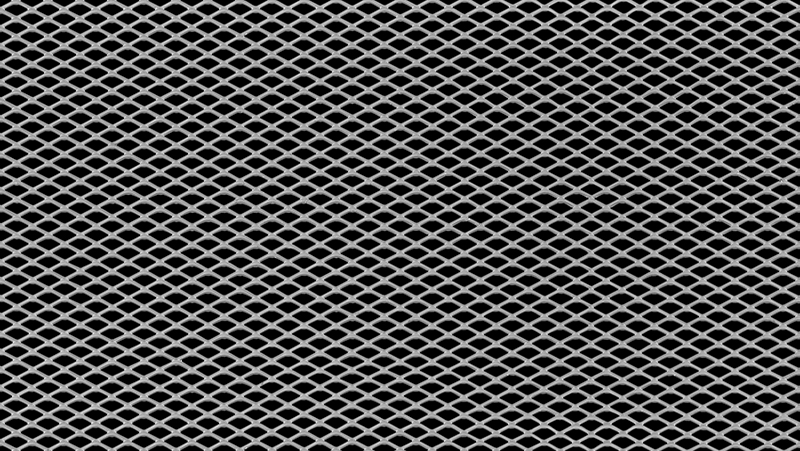

10-08S	10.00	5.64	0.75	0.50	1.05	1250 x 1250	Stainless 304
MMRB10	10.00	6.50	1.75	1.20	4.71	1250 x 2500	Mild Steel, Pre Galv & Aluminium

12mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

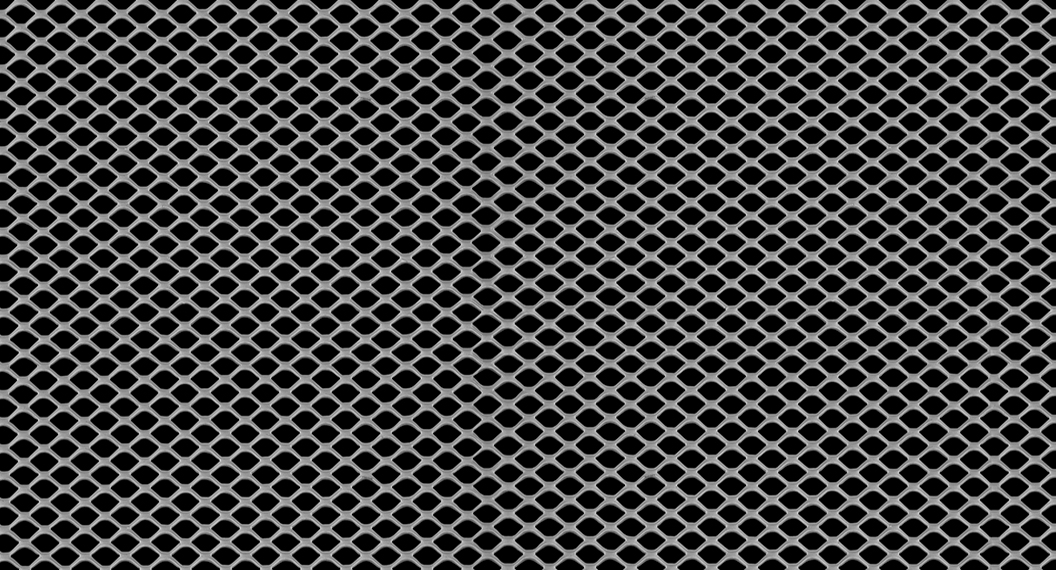

Q12-8.5	12.70	8.50	1.30	0.90	2.16	1250 x 2500	Mild Steel

19mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

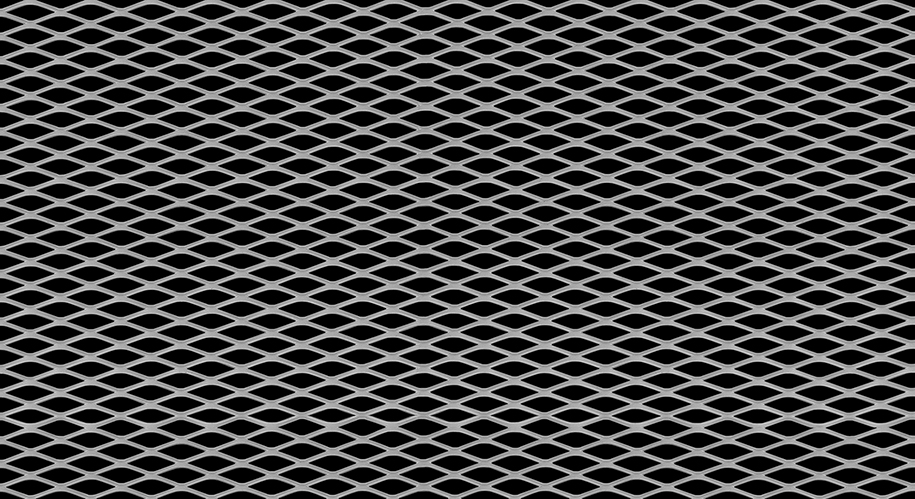

19-98	19.05	7.43	1.70	0.90	3.23	1250 x 2500	Mild Steel

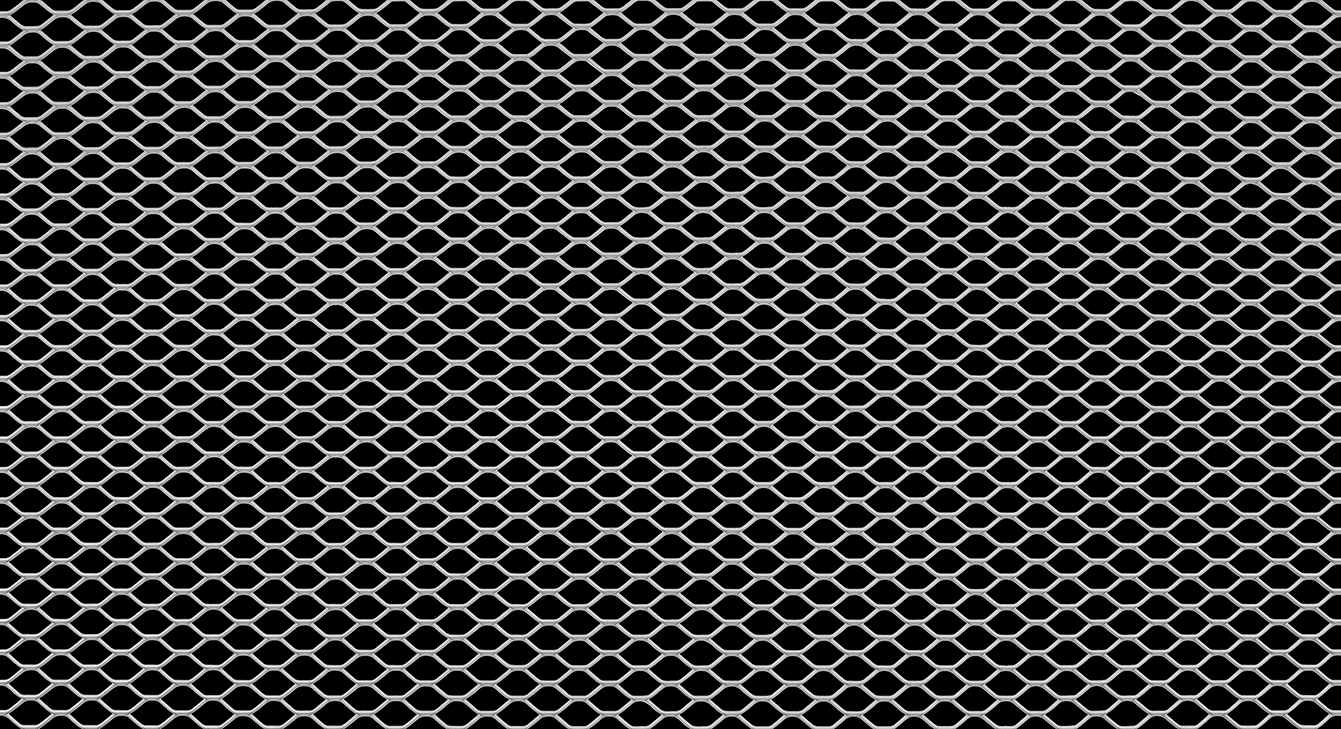

HEX 19	19.05	9.50	1.22	1.20	2.41	1250 x 1250	Mild Steel
HEX 19-24	19.05	7.62	3.00	0.70	4.55	1250 x 2500	Mild Steel
HEX 19	19.05	9.50	1.22	1.20	2.41	1250 x 1250	Pre Galv
HEX 19	19.05	9.50	1.22	1.20	0.82	1250 x 1250	Aluminium

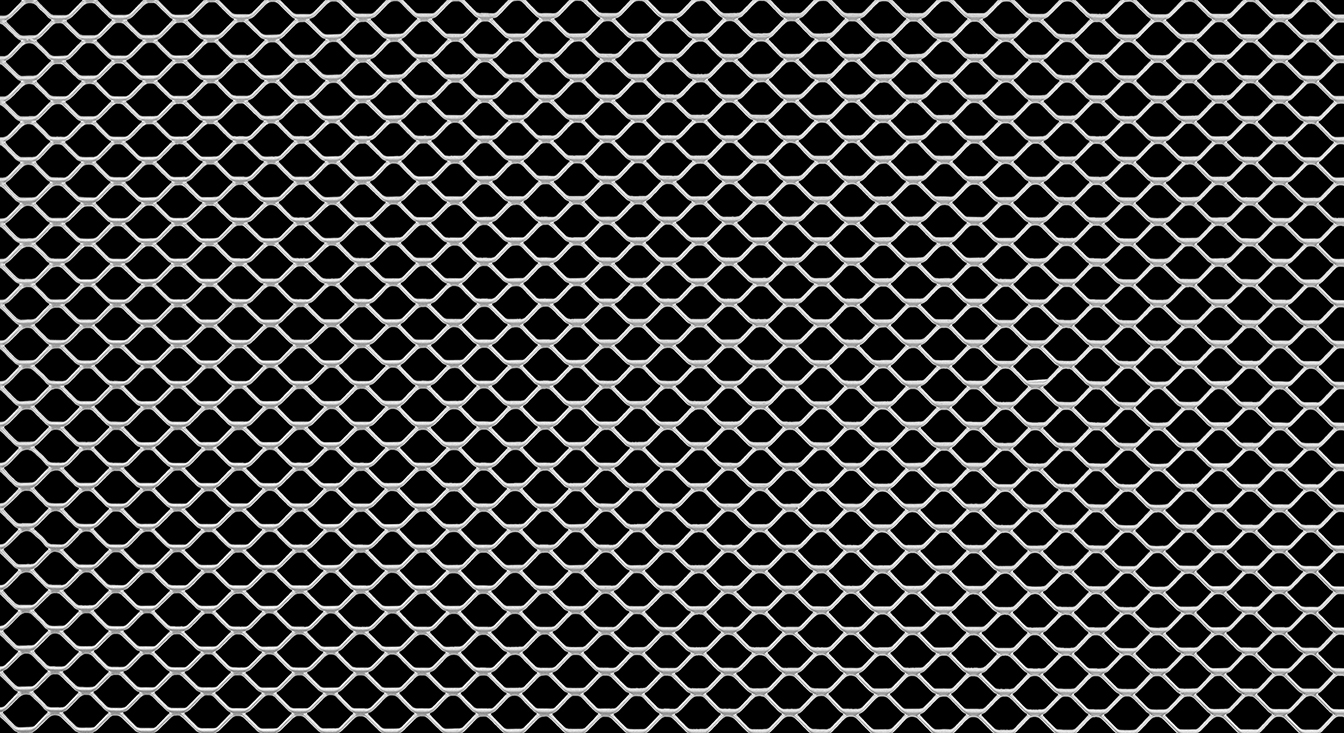

HEX 19-01A	19.05	12.70	1.10	1.20	0.55	1250 x 2500	Aluminium
19-98A	19.05	7.43	1.70	0.90	1.12	1250 x 2500	Aluminium
19-96S	19.05	7.26	1.71	0.70	2.70	1250 x 2500	Stainless 304
19-98S	19.05	7.26	1.71	0.90	3.47	1000 x 2000	Stainless 304
MMRB25	19.05	8.00	2.00	1.20	4.71	1250 x 2500	Mild Steel, Pre Galv & Aluminium

25mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

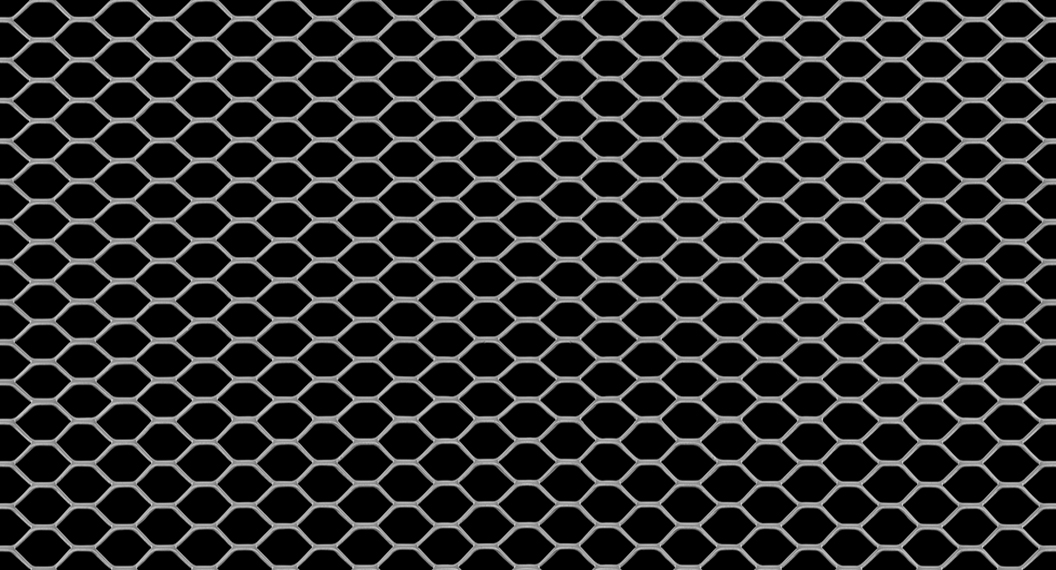

HEX 25	25.40	12.70	1.27	1.20	1.89	1250 x 1250	Mild Steel
HEX 25 (3.0 x 0.9)	25.40	13.50	3.00	0.90	3.15	1250 x 2500	Mild Steel
HEX 25	25.40	12.70	1.27	1.20	0.71	1250 x 1250	Aluminium

28mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

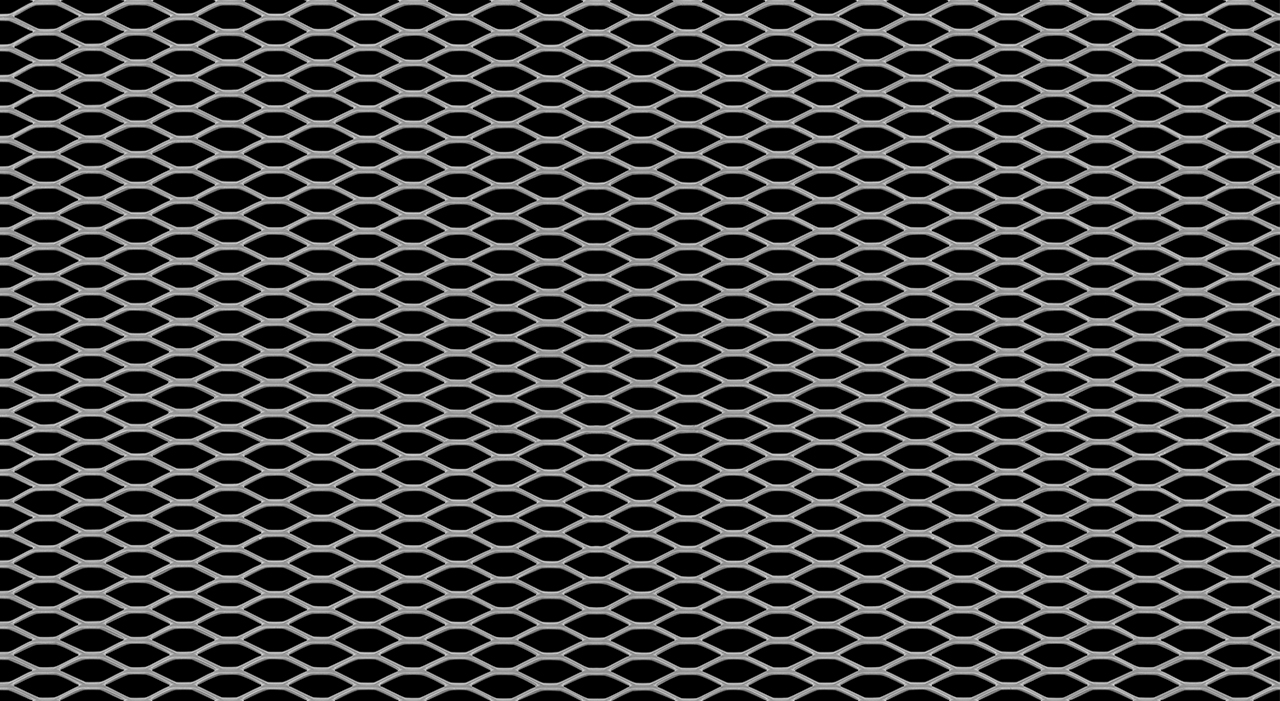

28-96	28.58	9.52	1.98	1.20	3.92	1250 x 2500	Mild Steel
28-99A	28.58	9.52	1.65	0.90	0.85	1250 x 2500	Aluminium

30mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet
30-94	30.48	11.72	2.36	1.50	5.06	2440 x 1220	Mild Steel

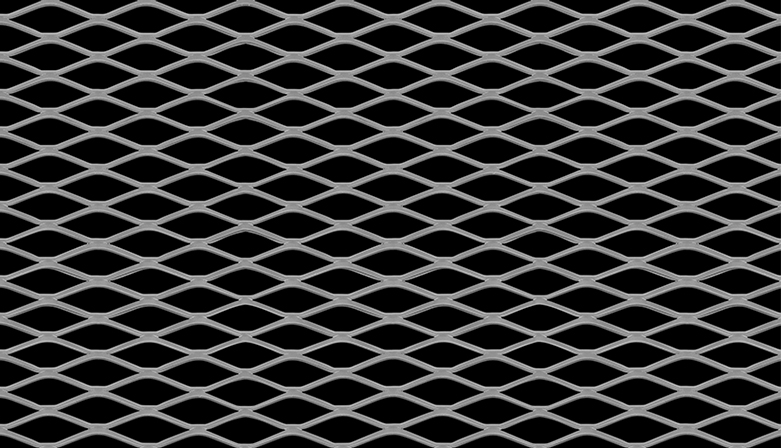

30-96A	30.48	11.72	2.36	1.20	1.28	1250 x 2500	Aluminium

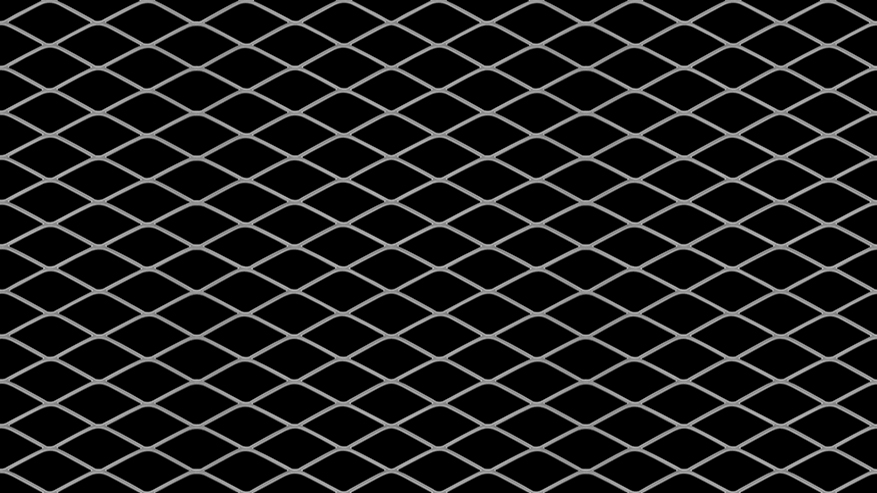

SSEML	30.48	14.00	1.20	0.70	0.96	2500 x 700	Stainless 304 & 430
MMRB35	30.48	10.00	2.00	1.50	4.71	1250 x 2500 sheets	Mild Steel, Pre Galv & Aluminium

38mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

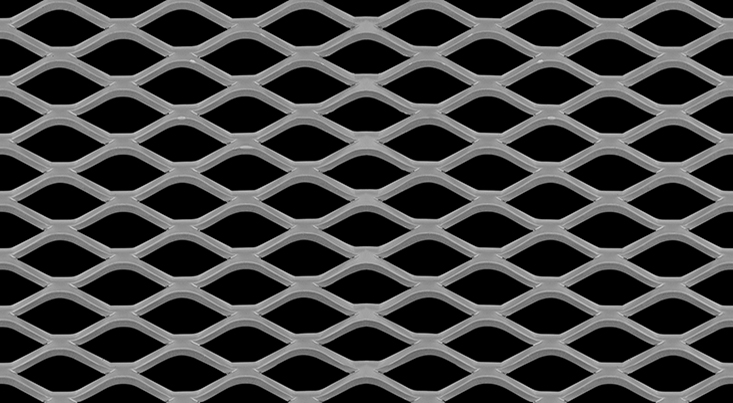

38-69	38.10	18.00	3.00	3.00	7.85	1220 x 2440	Mild Steel
38-95	38.10	16.93	3.08	1.50	4.57	2440 x 1220	Mild Steel
38-97	38.10	16.48	2.25	1.50	3.43	2440 x 1220	Mild Steel
38-91S	38.10	16.48	1.91	1.20	2.23	2500 x 1250	Stainless 304
MMRB55	38.10	14.00	2.50	1.20	-	1250 x 2500 sheets	Mild Steel, Pre Galv & Aluminium

50mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

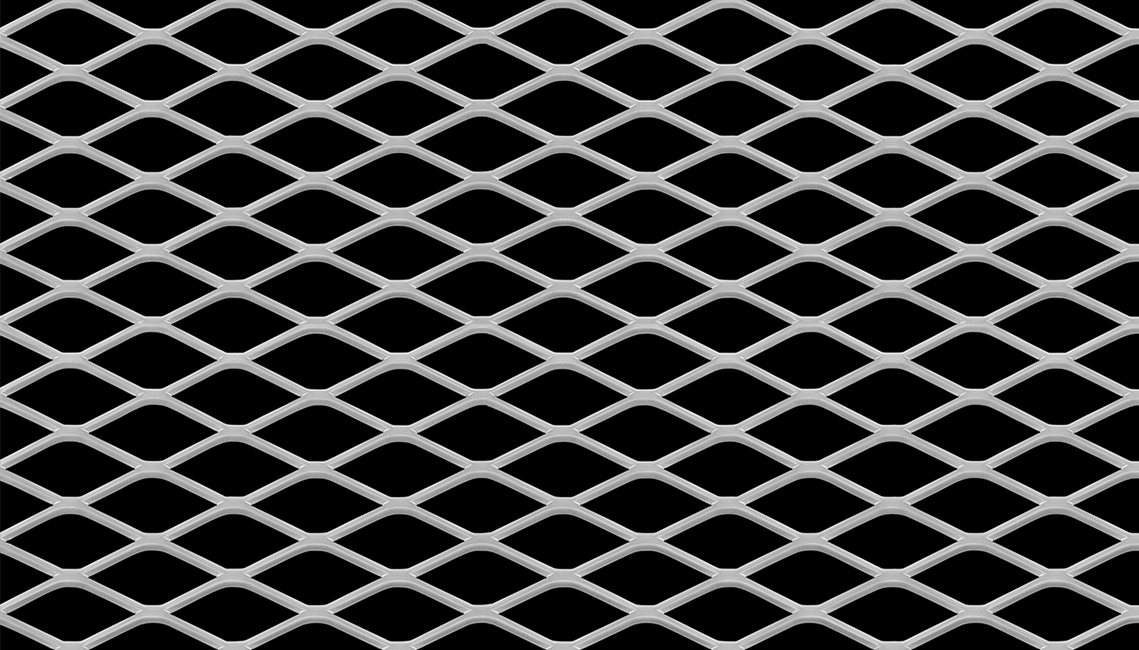

50-88	50.80	22.58	3.89	3.00	8.09	2440 x 1220	Mild Steel
50-89	50.80	22.58	3.12	3.00	6.52	2440 x 1220	Mild Steel
50-93	50.80	22.58	3.05	1.50	3.39	2440 x 1220	Mild Steel
50-89 HDG	50.80	22.58	3.12	3.00	7.10	2440 x 1220	H D Galv
50-89A	50.80	22.50	3.12	3.00	2.25	2500 x 1250	Aluminium
50-87S	50.80	23.44	2.65	1.20	2.30	2500 x 1250	Stainless 304
MMRB65	50.00	22.58	3.05	1.50	3.20	1250 x 2500 sheets	Mild Steel, Pre-Galv & Aluminium

76mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet
76-92	76.20	33.87	3.58	3.00	4.97	2440 x 1220	Mild Steel

85mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet
85-96	85.73	40.64	3.18	3.00	3.67	2440 x 1220	Mild Steel

101mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

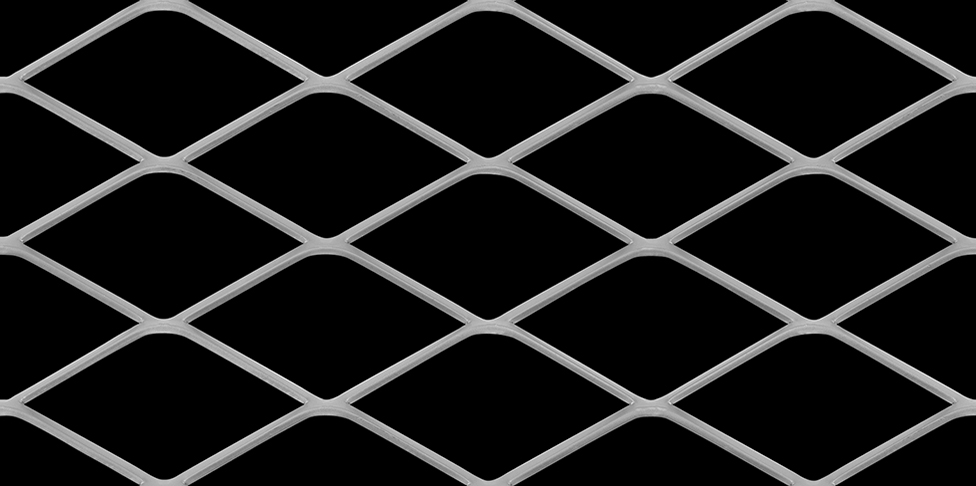

10-95	101.60	50.80	5.03	3.00	4.66	2440 x 1220	Mild Steel
10-97	101.60	50.80	3.35	3.00	3.11	2440 x 1220	Mild Steel

121mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet
12-69	121.92	31.28	3.50	3.00	5.27	2440 x 1220	Mild Steel

133mm Meshes

Ref No.	Mesh Pitch LW (mm)	Mesh Pitch SW (mm)	Strand Width	Strand Thickness	Weight kg / m2	Sheet Size LWD x SWD	Material Type	Image	Data Sheet

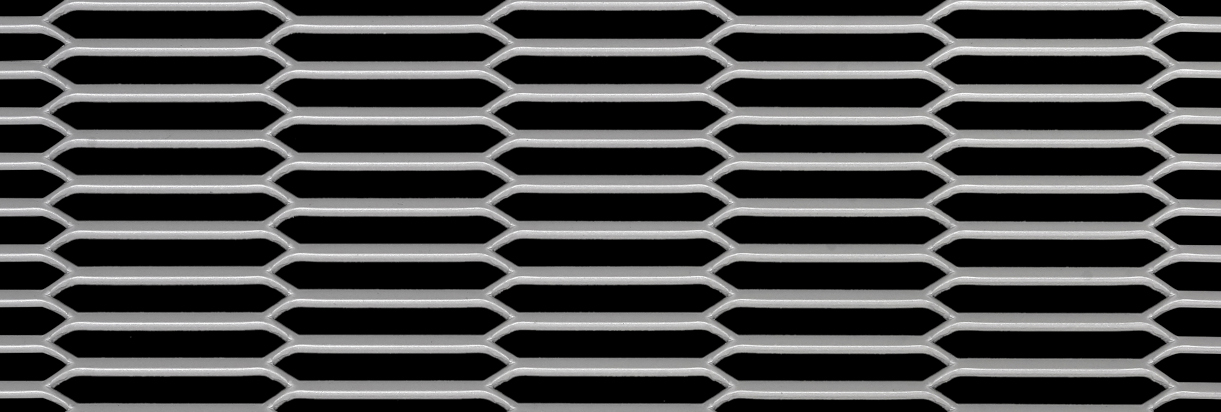

MM7732	133.33	12.90	3.00	3.00	10.50	1200 x 2200	Mild Steel

| | | | | | | | | | |
